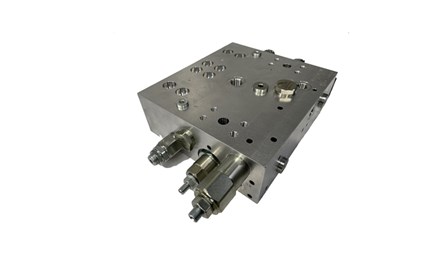

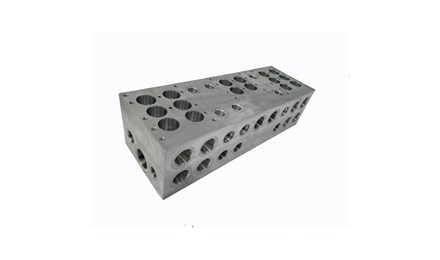

- INTERSEAL offers extensive customisation possibilities to make hydraulic manifolds fit into every single project or machine.
- In addition to extensive customisation possibilities for hydraulic manifolds, INTERSEAL also offers the option of having these hydraulic manifolds comply with the specifications required by international certifying bodies. The manifolds can also be supplied with such certification.

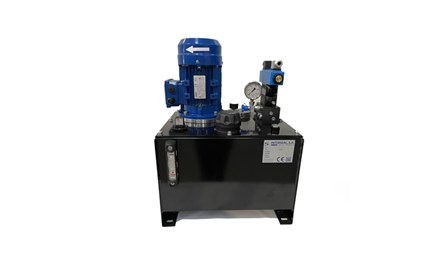

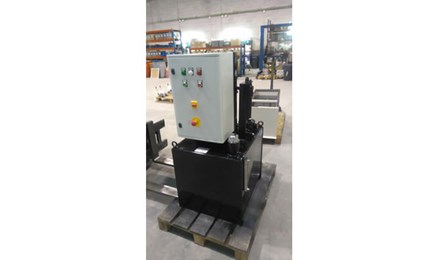

INTERSEAL offers extensive customisation possibilities to make hydraulic power packs fit into every single project or machine.
In addition to extensive customisation possibilities for hydraulic power packs, INTERSEAL also offers the option of having these hydraulic equipment comply with the specifications required by international certifying bodies. The equipment can also be supplied with such certification.

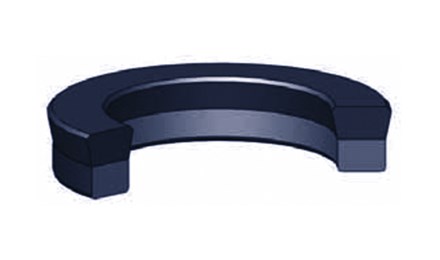

CL canvas rubber sealNBR nitrile rubber with natural cotton Hardness: 90 ºSh
CNV collar, Nitrile collar with asymmetrical lips. NBR nitrile rubber hardness: 80º Sh A
CP collar, Polyurethane collar with symmetrical lips Application: for rods and pistons.

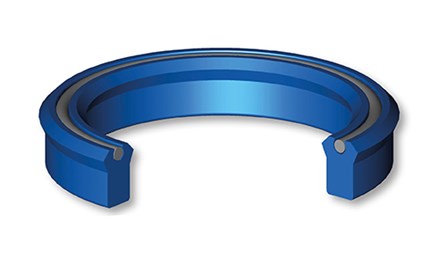

CPN polyurethane collar, Polyurethane collar with symmetrical lips Application: for rods and pistons with energising spring.

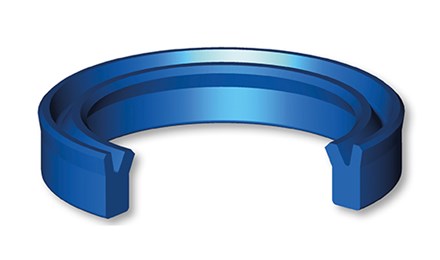

CPV polyurethane collar, Polyurethane collar with asymmetrical lips for rod application.

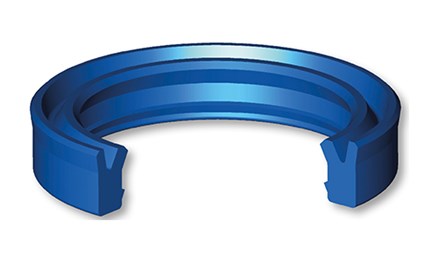

CPV2 double-lip collar, Polyurethane double-lip locking collar for rods

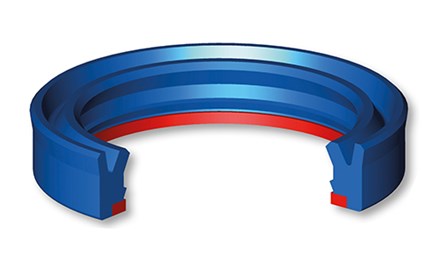

CPVA ring collar, Polyurethane double-lip locking collar For rods with anti-extrusion ring

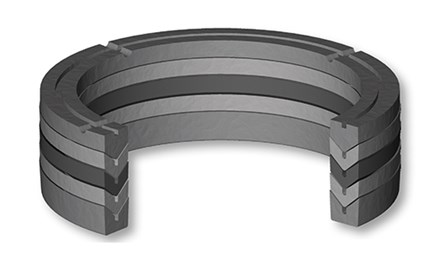

VP angle joint packing, NBR nitrile rubber V-angle joint packing with natural cotton.

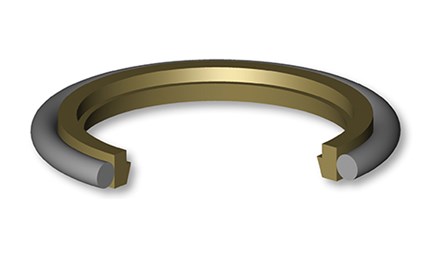

ISV single-acting seal, Single-acting rod seal FILLED PTFE + NBR OR FKM

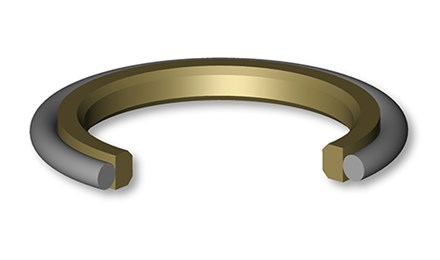

ISVD double-acting seal, Double-acting rotary rod seal FILLED PTFE + NBR OR FKM

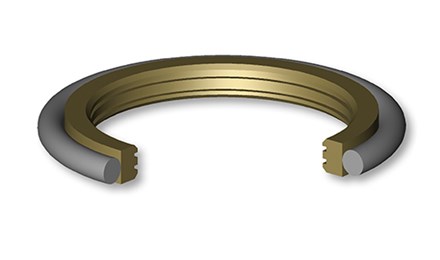

ISVR double-acting seal. Double-acting rotary rod seal FILLED PTFE + NBR OR FKM

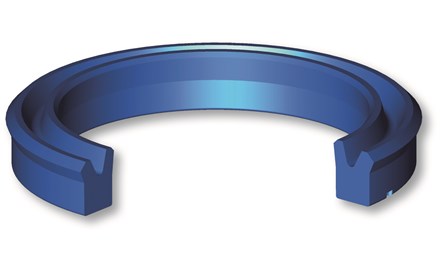

CPE piston collar, Polyurethane collar for single-acting asymmetrical lip piston.

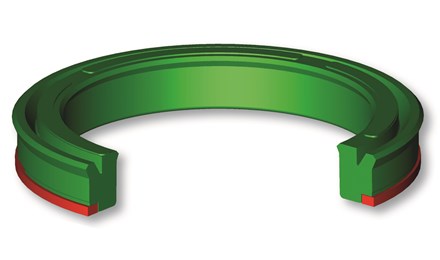

CPEA piston collar, Polyurethane collar for single-acting asymmetrical lip piston with anti-extrusion ring.

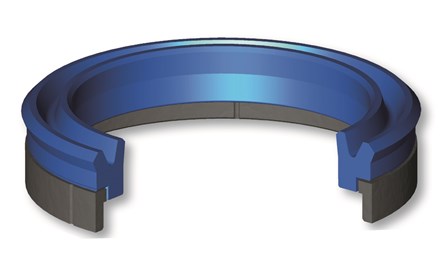

CPEG piston collar, Polyurethane collar for single-acting asymmetrical lip piston and guide

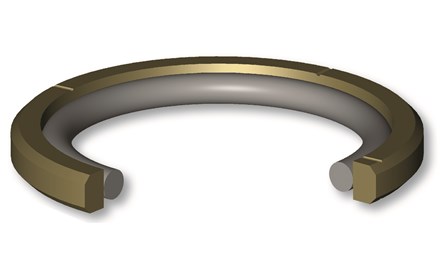

ISP piston seal, Double-acting PTFE seal for static or semi-dynamic applications FILLED PTFE + NBR OR FKM

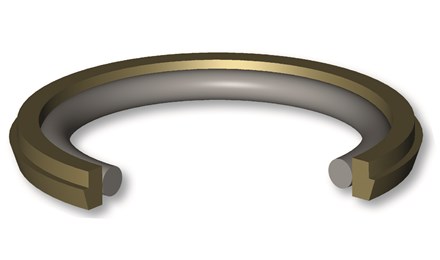

ISPS piston seal, Single-acting PTFE seal for static or semi-dynamic applications FILLED PTFE + NBR OR FKM
ISPR piston seal, PTFE rotary piston seal FILLED PTFE + NBR OR FKM

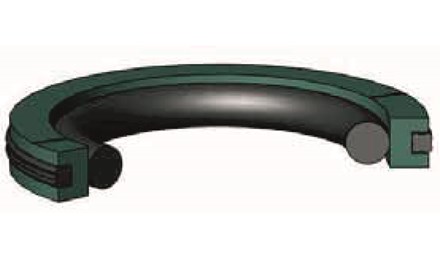

ISPQ piston seal, Three-part double-acting piston seal, FILLED PTFE + NBR OR FKM

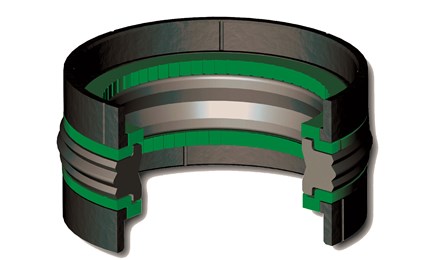

PDG piston seal, Five-element double-acting piston seal with guide ring.

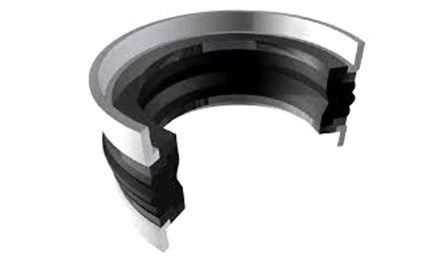

PDL piston seal, Three-element double-acting piston seal, rubber canvas with guide ring

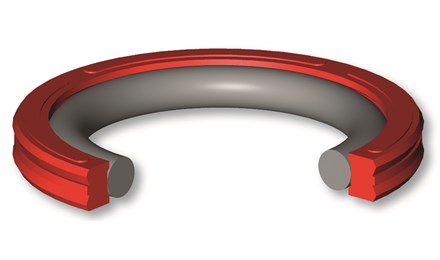

PDP piston seal, Double-acting polyurethane piston seal Hardness: 97 Shore

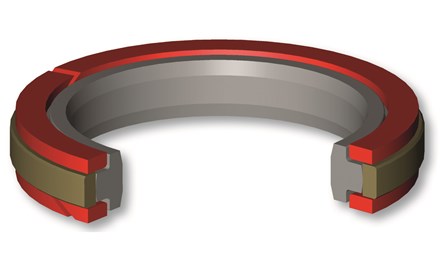

PDTG piston seal , Double-acting piston seal Polytetrafluoroethylene PTFE + Bronze.

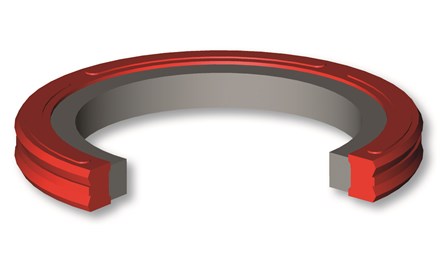

PDPC piston seal, Double-acting piston seal, Polyurethane 97 Sh+NBR

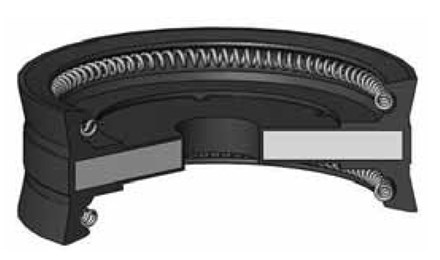

TE-TE piston seal, Complete NBR double-acting piston with energising spring for Pneumatics

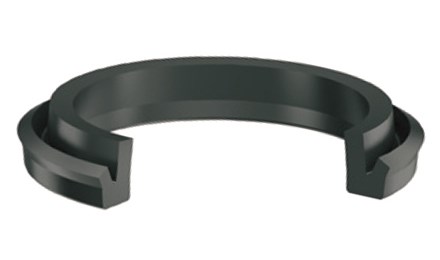

CNE piston seal, NBR Nitrile rubber piston seal Hardness: 80 ºSh

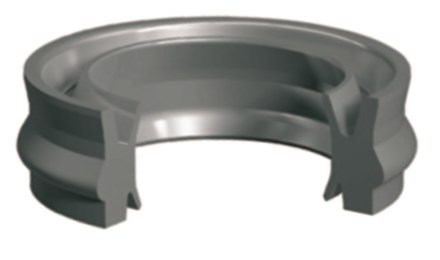

EU pneumatic seal, Two-part single-acting pneumatic seal Polyester. 55 Shores NBR 80 Shores

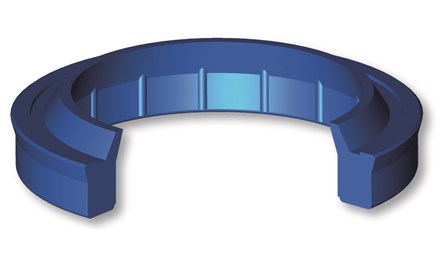

RP1 rod wiper, Rod wiper with external sealing lip. Polyurethane. 93 Shores

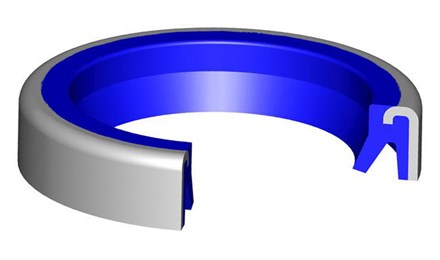

RPM rod wiper, Rod wiper with metallic steel exterior. Polyurethane. 93 Shores

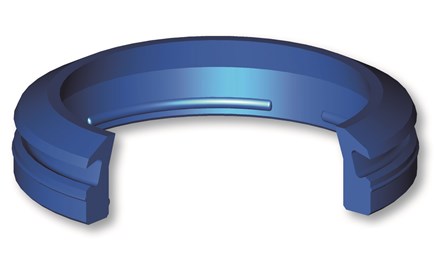

SAC rod wiper, SAC rod wiper with external sealing lip. Polyurethane. 93 Shores
PP pneumatic wiper, Pneumatic wiper with Polyurethane cushioning. 93 Shores NBR 90 Shores

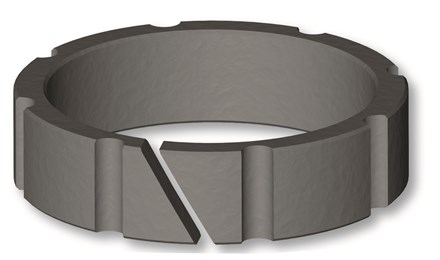

FSP cylinder guide, Guide ring for plunger cylinder. Acetal resin with glass fibre.

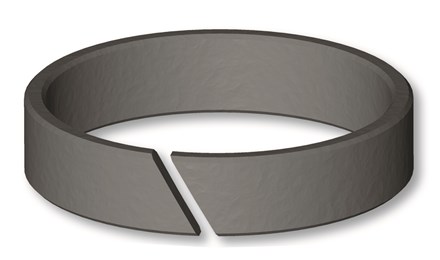

GER piston guide, Cut piston guide ring. Acetal resin with glass fibre

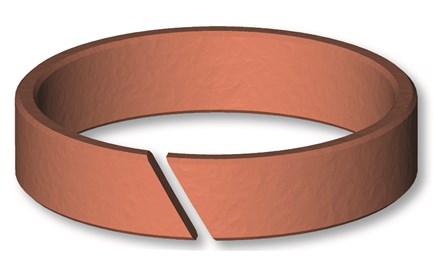

GRF piston rod guide, Rod guide ring and cut piston. Phenolic resin with natural cotton

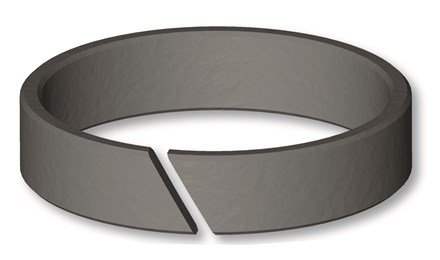

GR piston rod guide, Rod guide ring and cut piston. Acetal resin with glass fibre.
Bonded seal seals, Bonded seal seals, NBR, FKM, in steel and stainless steel.

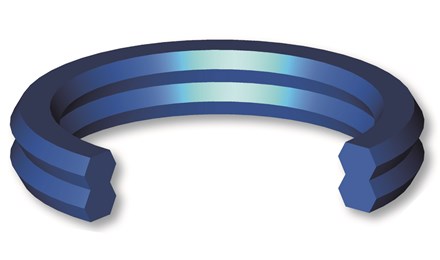

OP double-acting seal, Double-acting seal for rod and piston. Polyurethane Hardness: 93 Shore

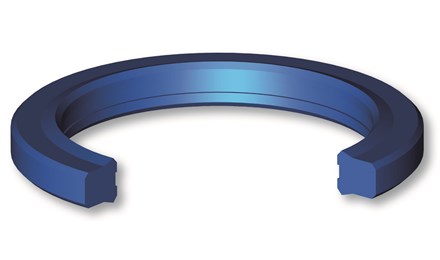

PFS static seal, Static seal for SAE polyurethane fastener Hardness: 93 Shore A
O-rings, O-rings, NBR 70/90 Sh. -30ºC+ 110ºC, Silicone MQ -60ºC + 230ºC, Viton FKM -20ºC + 200ºC.

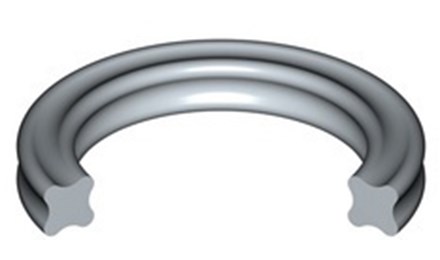

Q-ring seal, Four-lip square seal, Nitrile rubber NBR Hardness: 70 Shore

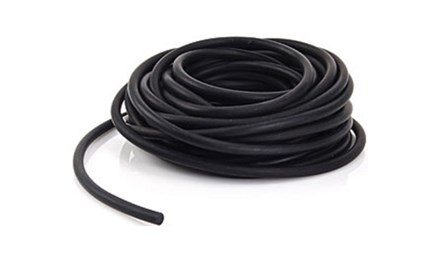

Cord ring, Cord ring by the metre. NBR 70 Sh. A -30ºC +110ºC. Silicone MQ -60ºC + 230ºC Viton FKM -20ºC + 200 º C

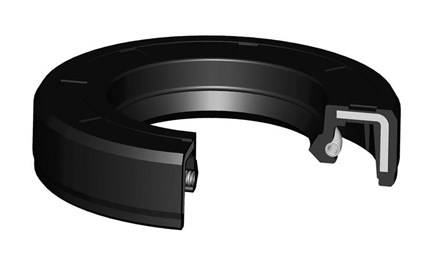

SC type
Single-lip seal manufactured according to DIN 3760 standard. The exterior is rubber-coated to increase the sealing ability with the pocket.

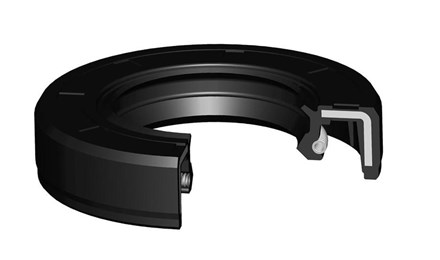

TC type
Double-lip seal manufactured according to DIN 3760 standard. The anti-dust lip design protects from external contamination. The exterior is rubber-coated for increased sealability with the pocket.

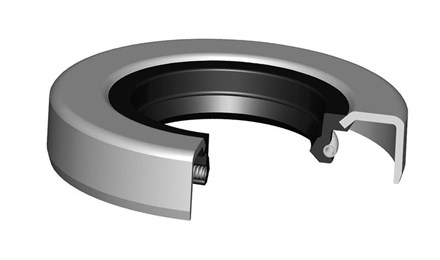

SB type
Single-lip seal. The exterior is finished in sheet metal. Designed to absorb temperature and facilitate assembly. Manufactured according to DIN 3760 standard with phosphate coated sheet.

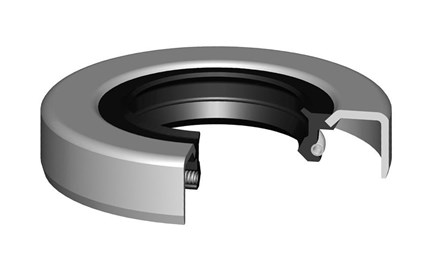

TB type
Double-lip seal. The exterior is finished in sheet metal. Designed to withstand temperatures and facilitate assembly. Manufactured according to DIN 3760 standard with phosphate coated sheet, with anti-dust lip.
SA type
Single-lip seal. The exterior is finished in sheet metal and reinforced. Designed to withstand temperatures, heavy loads and dirtier environments, and facilitate assembly.

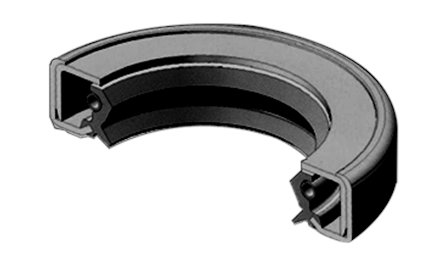

TA type
Single-lip seal. The exterior is finished in sheet metal and reinforced. Designed to withstand temperatures, heavy loads and dirtier environments, and facilitate assembly, with anti-dust lip.

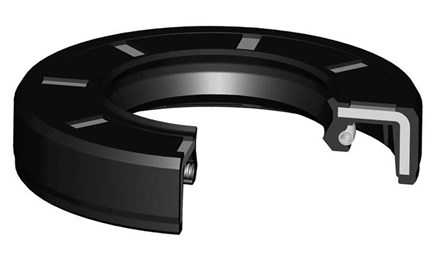

TCN type
Double-lip, special construction seal to withstand pressures up to 11 bars. The exterior is rubber-coated to increase the sealing ability with the pocket.
DC type
Working double-lip seal with two springs. Designed to separate two fluids. Great sealing power for double sealing. Commonly used in water pumps and crankcases to separate two fluids.

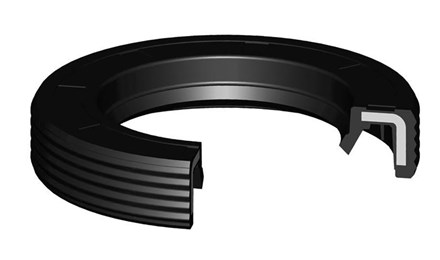

VG type
Shutter-type springless single-lip seal with ribbed outer lip. Specifically designed to protect against external contamination. The outer ribbing facilitates assembly and absorbs temperature expansion.

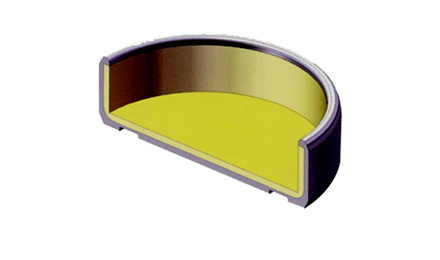

Exterior fastening covers. With various specifications (RCA, END CAPS, CAPELLOTI) manufactured for the end-of-stroke fastening of reducers. They can be manufactured in various materials, such as FPM, NBR, VMQ, VMQ.

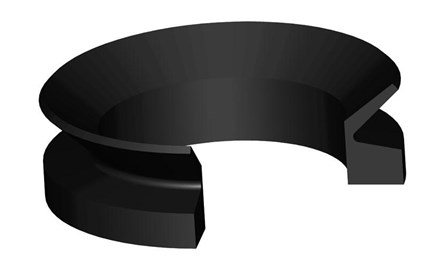

VA, VA profile Standard design. Available in the widest range of materials and measurements (from Ø9.5 up to Ø2.020 mm).

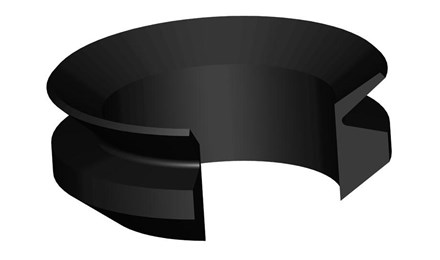

VS, VS profile The lip is exactly the same as in the VA, but the housing is more robust. As standard as the previous one, but in a smaller measurement range (up to Ø210 mm.)

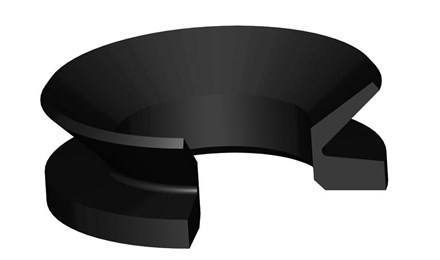

VL, VL profile Geometrically similar design to the VA but with reduced cross-section for small housings. Manufactured in a single section ranging from Ø135 up to Ø410 mm.

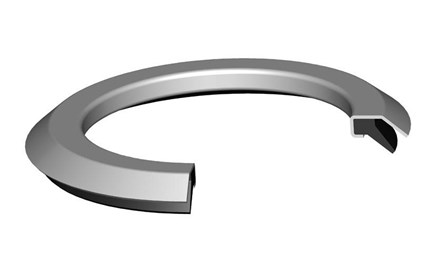

RB, The design of the RB seal is based on many years of experience in this type of applications, NBR OR FKM.
