Cost-effective solution for sealing single-acting and double-acting cylinder pistons, for hydraulic and pneumatic applications.
- Asymmetric U-shaped profile collars are normally used for single-acting applications.
- For double-acting applications, bi-directional seals with symmetric profile are normally assembled oversized with respect to their housing, in order to achieve, through assembly deformation, a perfect control of the fluid to be sealed.
These seals are manufactured in different profiles and also with different material compounds, providing solutions to most required market applications.
Other profiles, compounds and sizes, that are not included in the Catalogue, can also be supplied on request.

CPE piston collar, Polyurethane collar for single-acting asymmetrical lip piston.

CPEA piston collar, Polyurethane collar for single-acting asymmetrical lip piston with anti-extrusion ring.

CPEG piston collar, Polyurethane collar for single-acting asymmetrical lip piston and guide

FLEXI-N piston seal, PTFE seal for static or PTFE semi-dynamic applications + Compounds Spring: AISI 301 stainless steel

FLEXI-U piston seal, PTFE seal for static or PTFE semi-dynamic applications + Compounds Spring: AISI 301 stainless steel

ISP piston seal, Double-acting PTFE seal for static or semi-dynamic applications FILLED PTFE + NBR OR FKM

ISPS piston seal, Single-acting PTFE seal for static or semi-dynamic applications FILLED PTFE + NBR OR FKM

ISPR piston seal, PTFE rotary piston seal FILLED PTFE + NBR OR FKM

ISPQ piston seal, Three-part double-acting piston seal, FILLED PTFE + NBR OR FKM

PDG piston seal, Five-element double-acting piston seal with guide ring.

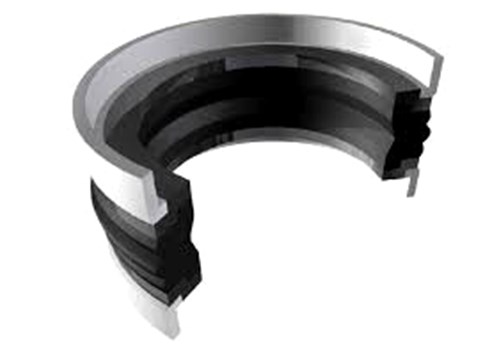

PDL piston seal, Three-element double-acting piston seal, rubber canvas with guide ring

PDP piston seal, Double-acting polyurethane piston seal Hardness: 97 Shore

PDTG piston seal , Double-acting piston seal Polytetrafluoroethylene PTFE + Bronze.

PDPC piston seal, Double-acting piston seal, Polyurethane 97 Sh+NBR

TE-TE piston seal, Complete NBR double-acting piston with energising spring for Pneumatics

CNE piston seal, NBR Nitrile rubber piston seal Hardness: 80 ºSh
