Hydraulics
Hydraulic manifold / Hydraulic manifold
  • INTERSEAL offers extensive customisation possibilities to make hydraulic manifolds fit into every single project or machine.
Certified hydraulic manifold / Hydraulic manifold
  • In addition to extensive customisation possibilities for hydraulic manifolds, INTERSEAL also offers the option of having these hydraulic manifolds comply with the specifications required by international certifying bodies. The manifolds can also be supplied with such certification.
Sealing
CN / Rod seals

NBR CN sealRod seal in NBR 80 Sh. Symmetrical lips

CNV / Rod seals

CNV collar, Nitrile collar with asymmetrical lips. NBR nitrile rubber hardness: 80º Sh A

CP / Rod seals

CP collar, Polyurethane collar with symmetrical lips Application: for rods and pistons.

CPDV / Rod seals

CPDV collar, Polyurethane double-lip locking collar for rods

CPN / Rod seals

CPN polyurethane collar, Polyurethane collar with symmetrical lips Application: for rods and pistons with energising spring.

CPV / Rod seals

CPV polyurethane collar, Polyurethane collar with asymmetrical lips for rod application.

CPV2 / Rod seals

CPV2 double-lip collar, Polyurethane double-lip locking collar for rods

CPVA / Rod seals

CPVA ring collar, Polyurethane double-lip locking collar For rods with anti-extrusion ring

BONDED SEAL / Static

Bonded seal seals, Bonded seal seals, NBR, FKM, in steel and stainless steel.

OP / Static

OP double-acting seal, Double-acting seal for rod and piston. Polyurethane Hardness: 93 Shore

PFS / Static

PFS static seal, Static seal for SAE polyurethane fastener Hardness: 93 Shore A

OR / Static

O-rings, O-rings, NBR 70/90 Sh. -30ºC+ 110ºC, Silicone MQ -60ºC + 230ºC, Viton FKM -20ºC + 200ºC.

QR / Static

Q-ring seal, Four-lip square seal, Nitrile rubber NBR Hardness: 70 Shore

FIMBU / Bushings and bearings

FIMBU bushing, Filled PTFE base, sintered CuSn8 bronze coating, low-carbon steel support.

FIMBX / Bushings and bearings

FIMBX bushing, Low-carbon support with porous and sintered sliding coating, which is in turn impregnated with a resin-acetal coating.

FIMBRW-BRM / Bushings and bearings

FINBW-BRM bushing, The bearings of the BRM-10 series are made entirely of CuSn8 bronze.

SC / Seals

SC type

Single-lip seal manufactured according to DIN 3760 standard. The exterior is rubber-coated to increase the sealing ability with the pocket.

TC / Seals

TC type

Double-lip seal manufactured according to DIN 3760 standard. The anti-dust lip design protects from external contamination. The exterior is rubber-coated for increased sealability with the pocket.

SB / Seals

SB type

Single-lip seal. The exterior is finished in sheet metal. Designed to absorb temperature and facilitate assembly. Manufactured according to DIN 3760 standard with phosphate coated sheet.

TB / Seals

TB type

Double-lip seal. The exterior is finished in sheet metal. Designed to withstand temperatures and facilitate assembly. Manufactured according to DIN 3760 standard with phosphate coated sheet, with anti-dust lip.

SA / Seals

SA type

Single-lip seal. The exterior is finished in sheet metal and reinforced. Designed to withstand temperatures, heavy loads and dirtier environments, and facilitate assembly.

TA / Seals

TA type

Single-lip seal. The exterior is finished in sheet metal and reinforced. Designed to withstand temperatures, heavy loads and dirtier environments, and facilitate assembly, with anti-dust lip.

TCN / Seals

TCN type

Double-lip, special construction seal to withstand pressures up to 11 bars. The exterior is rubber-coated to increase the sealing ability with the pocket.

DC / Seals

DC type

Working double-lip seal with two springs. Designed to separate two fluids. Great sealing power for double sealing. Commonly used in water pumps and crankcases to separate two fluids.

VG / Seals

VG type

Shutter-type springless single-lip seal with ribbed outer lip. Specifically designed to protect against external contamination. The outer ribbing facilitates assembly and absorbs temperature expansion.

VA / V-rings - axial rings

VA, VA profile Standard design. Available in the widest range of materials and measurements (from Ø9.5 up to Ø2.020 mm).

VS / V-rings - axial rings

VS, VS profile The lip is exactly the same as in the VA, but the housing is more robust. As standard as the previous one, but in a smaller measurement range (up to Ø210 mm.)

VL / V-rings - axial rings

VL, VL profile Geometrically similar design to the VA but with reduced cross-section for small housings. Manufactured in a single section ranging from Ø135 up to Ø410 mm.

RB / V-rings - axial rings

RB, The design of the RB seal is based on many years of experience in this type of applications, NBR OR FKM.

GEAX / Rods

AXIAL SPHERICAL ROD

GEDO / Rods

648, E SERIES ISO 6124/1 WITH GREASE NIPPLE COUPLING: STEEL ON STEEL

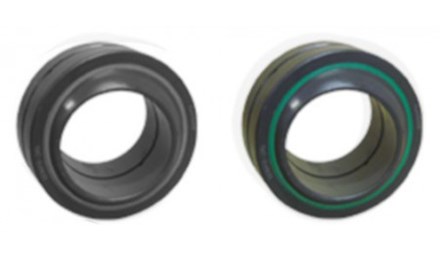

GEFO / Rods

DIN 648 - G SERIES ISO 6124/1 WITH GREASE NIPPLE COUPLING: STEEL ON STEEL

GEFW / Rods

MAINTENANCE-FREE COUPLING: CHROME-PLATED STEEL WITH PTFE FABRIC

GEHO / Rods

WITH GREASE NIPPLE COUPLING: STEEL ON STEEL

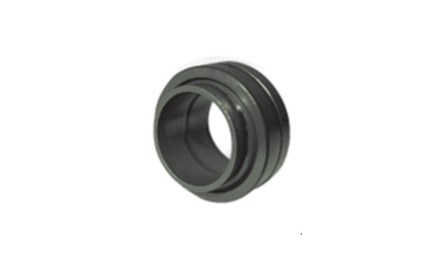

GELO / Rods

DIN 648, EW SERIES ISO 6124/1 WITH GREASE NIPPLE COUPLING: STEEL ON STEEL

GESX / Rods

OBLIQUE CONTACT SPHERICAL ROD

GEZO / Rods

RADIAL SPHERICAL ROD WITH SPLINES IN INCHES

GUK / Rods

DIN 648, E SERIES ISO 6124/1 MAINTENANCE-FREE COUPLING: STEEL ON STEEL

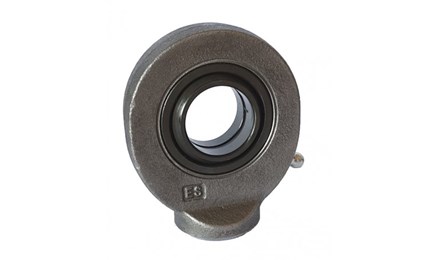

S...C / Rod ends

WELD-ON ROD END DIN 648, E SERIES WITH GREASE NIPPLE COUPLING: STEEL ON STEEL STAMPED ST52-3 STEEL END

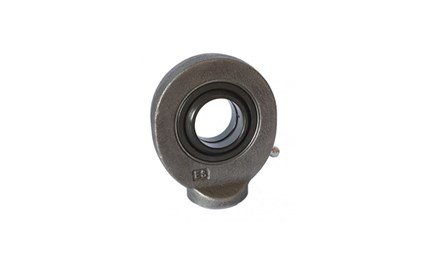

S...C-FO / Rod ends

WELD-ON ROD END DIN 648, E SERIES WITH GREASE NIPPLE COUPLING: STEEL ON STEEL STAMPED ST52-3 STEEL END

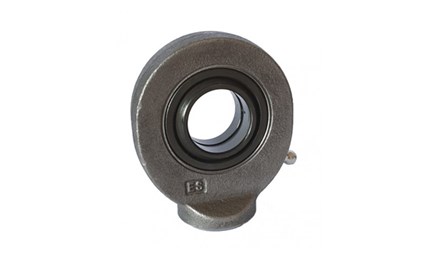

S...C-LO / Rod ends

WELD-ON ROD END DIN 648, E SERIES WITH GREASE NIPPLE COUPLING: STEEL ON STEEL STAMPED ST52-3 STEEL END

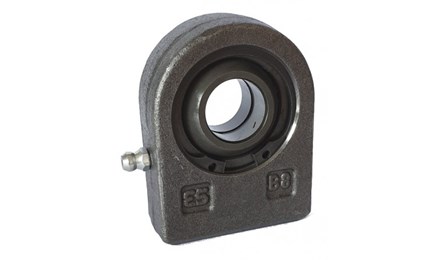

S...N / Rod ends

WELD-ON ROD END DIN 648, E SERIES WITH GREASE NIPPLE COUPLING: STEEL ON STEEL STAMPED ST52-3 STEEL END

PN...CE / Rod ends

WELD-ON ROD END CETOP STANDARD WITH GREASE NIPPLE COUPLING: STEEL ON STEEL ST52-3 STEEL END

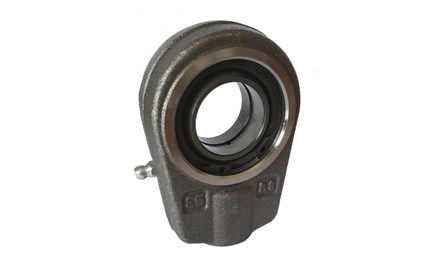

PR...N / Rod ends

THREADED ROD END HEAD DIN 648, E SERIES WITH GREASE NIPPLE COUPLING: STEEL ON STEEL END WITH C 45 STAMPED STEEL END

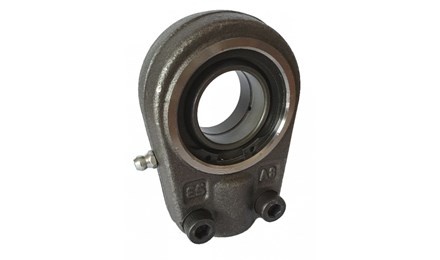

PR...U / Rod ends

THREADED ROD END WITH GREASE NIPPLE COUPLING: STEEL ON STEEL END WITH C 45 STAMPED STEEL END

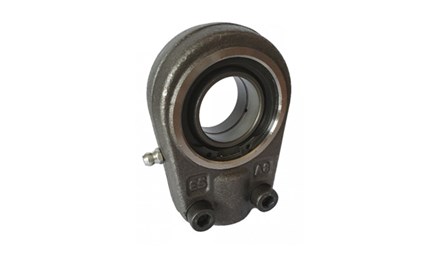

PR...U-LO / Rod ends

THREADED ROD END WITH GREASE NIPPLE COUPLING: STEEL ON STEEL END WITH C 45 STAMPED STEEL END

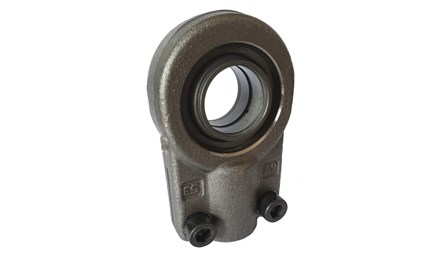

PR...CE / Rod ends

THREADED ROD END ISO 6982 - DIN 24338 CETOP STANDARD WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 STAMPED STEEL END

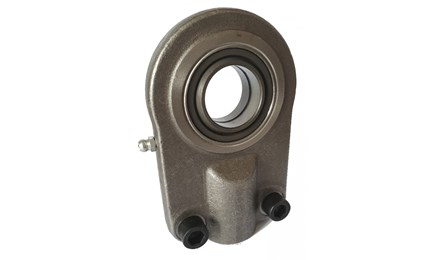

PR...S / Rod ends

THREADED ROD END DIN 24555 - ISO 6124/1 E SERIES CETOP STANDARD WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 STAMPED STEEL END

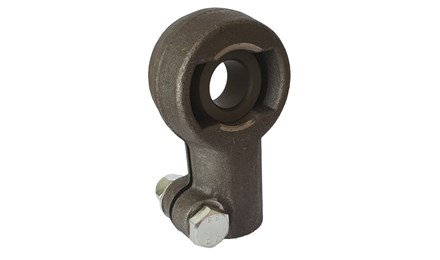

TXM / Rod ends

THREADED ROD END WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 STAMPED STEEL END

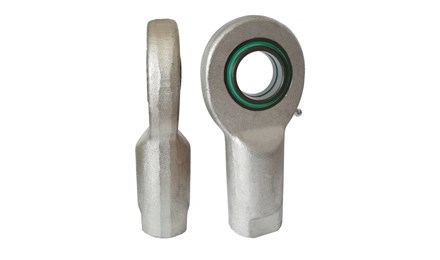

ESI...2RS / Rod ends

THREADED ROD END WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 STAMPED STEEL END

MA...D / Rod ends

THREADED ROD END WITH GREASE NIPPLE COUPLING: STEEL ON STEEL END WITH C 45 STAMPED STEEL END

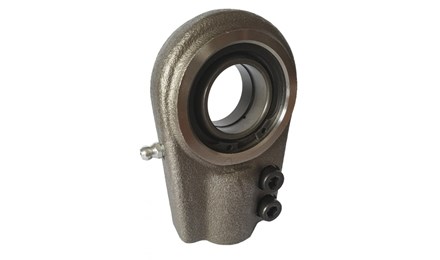

MA...D-F0 / Rod ends

THREADED ROD END WITH GREASE NIPPLE COUPLING: STEEL ON STEEL END WITH C 45 STAMPED STEEL END

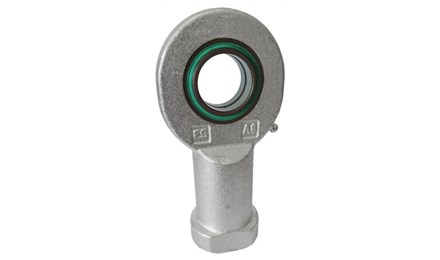

FI...D-2RS / Rod ends

THREADED ROD END DIN 648 - E SERIES - ISO 6126 WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 STAMPED STEEL END

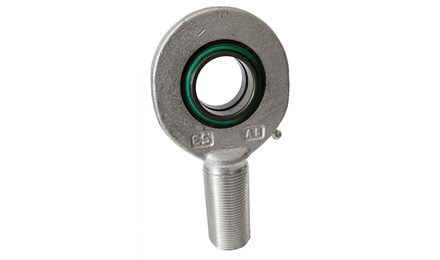

FE...D-2RS / Rod ends

THREADED ROD END DIN 648 - E SERIES - ISO 6126 WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 STAMPED STEEL END

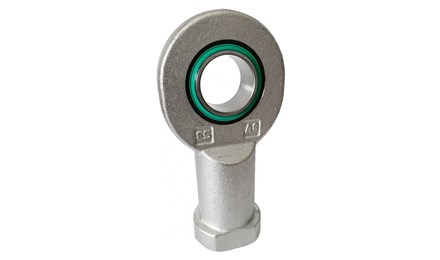

FI...U-2RS / Rod ends

THREADED ROD END DIN 648 - E SERIES - ISO 6126 MAINTENANCE-FREE WITH GREASE NIPPLE COUPLING: CHROME PLATED STEEL WITH PTFE FABRIC WITH C 45 STAMPED STEEL END

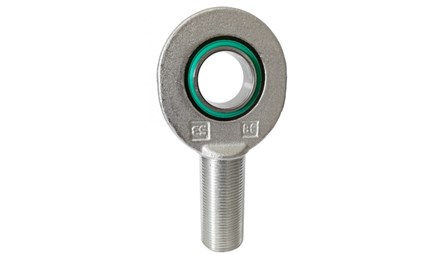

FE...U-2RS / Rod ends

THREADED ROD END DIN 648 - E SERIES - ISO 6126 MAINTENANCE-FREE WITH GREASE NIPPLE COUPLING: CHROME PLATED STEEL WITH PTFE FABRIC WITH C 45 STAMPED STEEL END

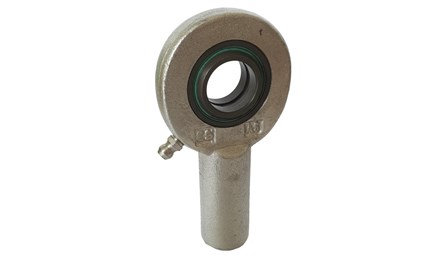

SF...D / Rod ends

THREADED ROD END DIN 648 - E SERIES - ISO 6126 WITH GREASE NIPPLE COUPLING: STEEL ON STEEL WITH C 45 GALVANISED STAMPED STEEL END

PRG / Rod ends

PROTECTIVE RUBBER CAP FOR PFI... PFE

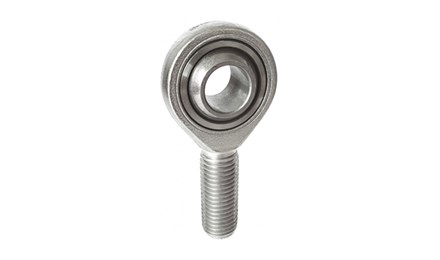

PFE...D / Rod ends

THREADED ROD END DIN 648 - K SERIES - ISO 6126 COUPLING: STEEL ON BRONZE

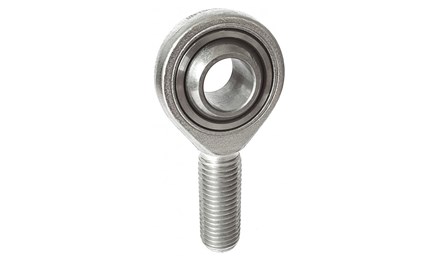

PFE...U / Rod ends

THREADED ROD END DIN 648 - K SERIES - ISO 6126 COUPLING: STEEL ON BRONZE + PTFE

PFI...U / Rod ends

THREADED ROD END DIN 648 - K SERIES - ISO 6126 COUPLING: STEEL ON BRONZE + PTFE

F / Fork ends

THREADED FORK • ISO 8133 • ST52-3 STEEL MATERIAL

PF / Fork ends

PIN FOR FORK ISO 8133 C40 STEEL MATERIAL

4FP...C / Fork ends

THREADED FORK ISO 8140 (CETOP) DIN 7175 C40 STEEL MATERIAL

PF...C / Fork ends

PIN FOR FORK STANDARD ISO (CETOP)

CF / Fork ends

FORK ATTACHMENT CLIP

4FP / Fork ends

THREADED FORK UNI 1676 DIN 71752 C40 STEEL MATERIAL
